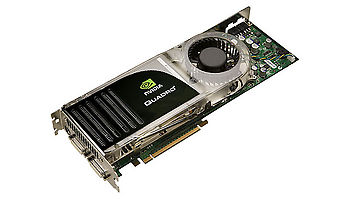

nVidia Quadro FX 5600
At A Glance
Manufacturer:nVidia
Series:Quadro FX
GPU:G80
Release Date:2007-03-06
Interface:PCI-E x16
Core Clock:600 MHz
Shader Clock:1440 MHz
Memory Clock:800 MHz (1600 DDR)
Memory Bandwidth:76.8 GB/sec
FLOPS:368.64 GFLOPS
Pixel Fill Rate:14400 MPixels/sec
Texture Fill Rate:19200 MTexels/sec
Details
Noise Level:Loud
Framebuffer:1536 MB
Memory Type:GDDR3
Memory Bus Type:64x6 (384 bit)
DirectX Compliance:10.0
OpenGL Compliance:2.1
PS/VS Version:4.0/4.0
Process:90 nm
Shader Processors:128
Pipeline Layout:Scalar MADD+MUL
Texture Units:32
Raster Operators24
Reference Images
Advanced Options Help About This Section
Overclock Pipelines Multi-GPU
Core: 600Decrease Core Clock
Increase Core Clock
Mem: 800Increase Memory Clock
Decrease Memory Clock
User Ratings Help About This Section
Overall
9.3 (21 votes)

Performance
9.1 (26 votes)

Price
4.9 (37 votes)

Features
9.7 (19 votes)

Overclockability
8.3 (24 votes)

Silence
8.9 (22 votes)
Video Card Related Ads Help About This Section
Minimize Restore Maximize
2 Retail Cards Based On This Board Help About This Section
Price Name Core Mem Buswidth Memory Displays TV VIVO HD HDCP 2-Slot
Camera PNY Quadro FX 5600 600? 800? 384 bit 1536 MB DL-DVI / DL-DVI y - y s y
Camera PNY Quadro FX 5600G 600? 800? 384 bit 1536 MB DL-DVI / DL-DVI y - y s y
Minimize Restore Maximize
3 Reviews Help About This Section
8 Comments
Wednesday, March 21, 2007 4:11:57 PM
anonymous
guest
this is a rendering card right ?
and werent the quadro series PCIx1 ? or are the dx10 ones different ?
Saturday, March 31, 2007 5:17:53 PM
anonymous
guest
PCI-x1 is for entry level cards does, that look like one?
Monday, April 09, 2007 5:32:52 PM
anonymous
guest
Is the Quadro series better than 8800 series?
Thursday, April 19, 2007 11:50:51 PM
nonymous
guest
Better if you use it for rendering but there exactly the same if used on games cept with more ram that is way too much to be used in games anyway.

EDIT: 25mhz higher clock which you could get to by simply overclocking the 8800 GTX.
Saturday, April 21, 2007 8:59:08 PM
anonymouse
guest
the 8800gtx has 100mhz higher mem clock
Tuesday, September 11, 2007 1:55:41 PM
anonymous
guest
GeForce and Quadro are not cards to be compared. GF are gaming cards whilst Quadro are for professinal CAD applications.
Although GF may have higher clock speed it is not meant for 3D.
Thursday, December 27, 2007 10:30:13 AM
Heck
guest
This card is probably to 3D rendering as the 8800GTX is to games. Friggin amazing.
Sunday, January 20, 2008 11:21:32 PM
turbo
guest
lol they need to edit it so its shows quad sli, nvidia sells servers with quad sli, fix it
